Buttweld Fitting

Elbow

An elbow is a type of buttweld pipe fitting used to change the direction of flow in a pipeline. The most common types are 90-degree, 45-degree, and 180-degree elbows, which allow for various directional changes. Additionally, male and female elbows are used for specific joint connections. These fittings ensure smooth fluid flow and are commonly used in industries such as oil & gas, petrochemicals, and power plants.

Ball Valve

A ball valve is a type of quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of fluids or gases through a pipe. The ball has a hole in the center, and when the valve is open, the hole aligns with the pipe, allowing the flow to pass through.Ball valves are widely used due to their durability, reliability, and ability to provide tight shut-off with minimal wear and tear. They are commonly used in various industries, including water treatment, oil and gas, chemical processing, food and beverage, HVAC systems, and more.

Flange-end Ball Valve

A flange-end ball valve is a type of ball valve that has flanged ends for connection to a piping system, rather than threaded or welded connections. The flanged design allows the valve to be securely attached to the pipe using bolts and gaskets, providing a robust, leak-tight seal. These valves are typically used in high-pressure and high-temperature applications where a strong, secure connection is required.Flange-end ball valves are popular in industries such as oil and gas, water treatment, chemical processing, power generation, and HVAC systems. Their ability to provide a quick and reliable on/off flow control, along with the durability of flanged connections, makes them ideal for situations where regular maintenance or disassembly might be required.

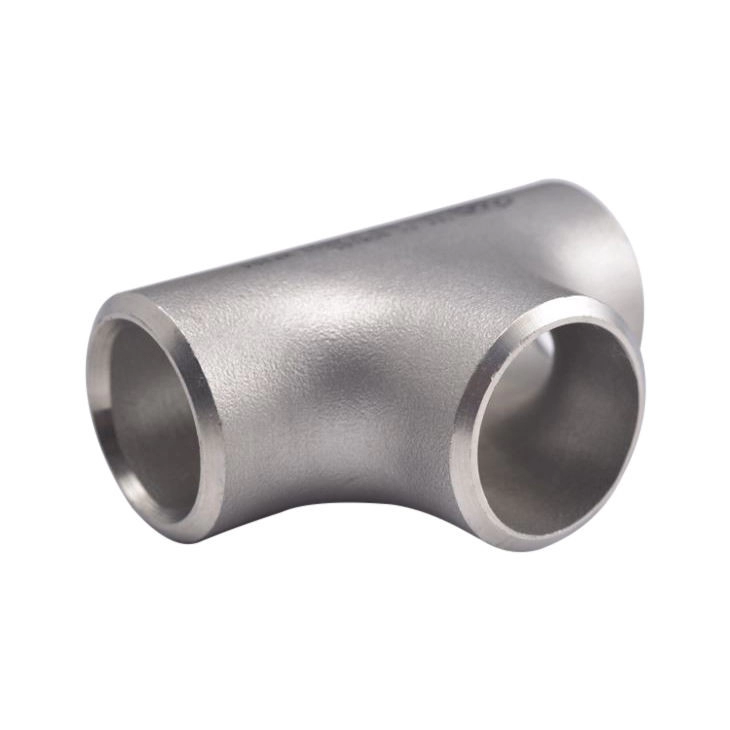

Tee

A tee is a buttweld pipe fitting used to combine or split the flow of fluids in a pipeline. It has three openings – one inlet and two outlets at 90° angles to the main line. There are two main types: Equal Tee, where all three outlets have the same diameter, and Reducing Outlet Tee, where one branch outlet has a smaller diameter than the main pipe. These fittings are widely used in plumbing, chemical, oil & gas, and water distribution applications.

Reducer

A reducer in buttweld fittings connects two pipes of different diameters, allowing for a smooth transition between them. There are two main types: 1. Concentric Reducer: Symmetrical, with a tapered design, used for vertical or upward flow applications. 2. Eccentric Reducer: Offset design, with one flat side, used in horizontal piping to prevent air or fluid buildup. Reducers are welded directly to pipes, providing a strong, permanent connection. They are made from materials like carbon steel, stainless steel, and alloys and are used in various industries to control flow, pressure, and material transfer.

Pipe Clamp

A pipe clamp is a device used to secure pipes to a structure or support, preventing them from shifting, vibrating, or moving within a piping system. It is typically used in various industries, including construction, plumbing, HVAC, and manufacturing, to ensure that pipes stay in place and maintain their integrity over time. Pipe clamps are installed along the length of pipes to support their weight and absorb any stress or vibrations that might occur during operation. They come in various materials, such as steel or stainless steel, and are designed to fit different pipe sizes. Pipe clamps are essential for maintaining proper alignment, reducing the risk of damage, and ensuring the safe and efficient operation of piping systems.

Cross

A Cross is a buttweld pipe fitting used where four pipes meet at a common junction. It has one inlet and three outlets (or vice versa) positioned at 90° angles to each other. The two main types include Equal Cross, where all four ends have the same diameter, and Reducing Cross, where one or more branch outlets have a smaller diameter than the main line. Cross fittings are widely used in fire sprinkler systems, chemical processing plants, and high-pressure applications.

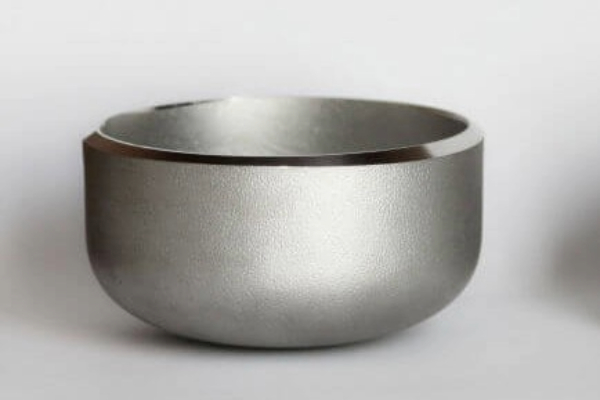

Cap

A Pipe Cap is a buttweld fitting used to close the end of a pipe, stopping the flow of fluids or gases. It protects pipe ends from damage, contaminants, and environmental exposure. Caps are commonly used in plumbing, industrial piping, and high-pressure applications to provide a secure, leak-proof seal.

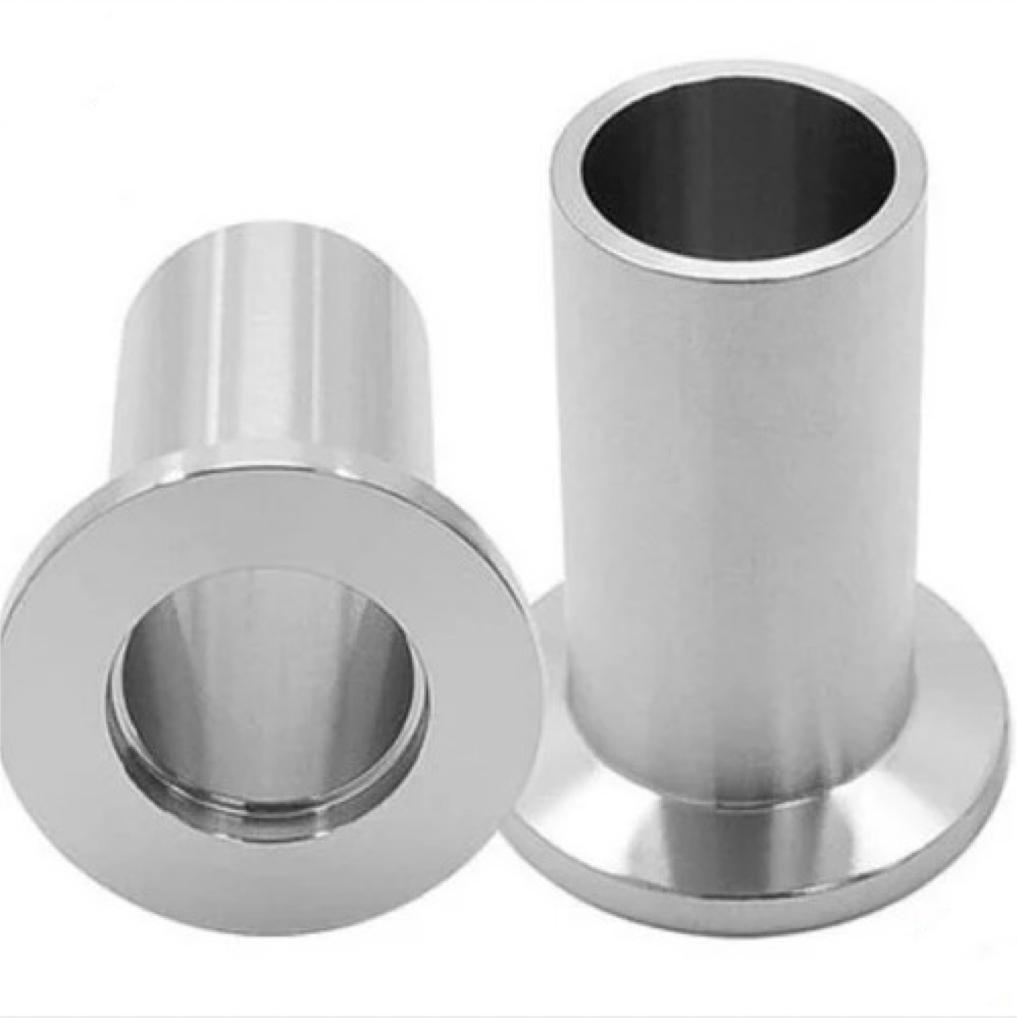

Stub End

A stub end is a short pipe fitting used in combination with a lap joint flange to create a flanged connection that allows easy dismantling and rotation. It is commonly used in systems that require frequent disassembly for maintenance or alignment adjustments. Lap-Joint Stub End is a specific subtype designed to work with a lap joint flange. It provides flexibility in pipe alignment and reduces the stress on bolts, making it ideal for low-pressure and non-critical applications.

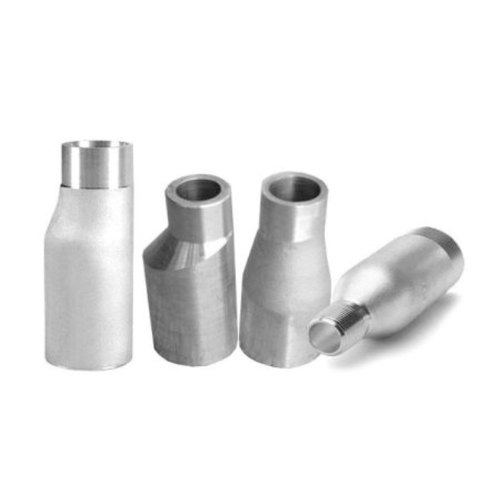

Nipple

A nipple is a short piece of pipe with male threads on both ends, used to connect two fittings or extend a pipeline. It comes in different types, including Swage Nipple and Pipe Nipple, depending on specific use cases. Swage Nipple is used for reducing pipe diameters, typically in high-pressure applications, while Pipe Nipple is a straight pipe connector used in low to medium-pressure systems.

There are different types of nipples, including barrel nipples and hex nipples
