+91 9766352586Sheet Plates

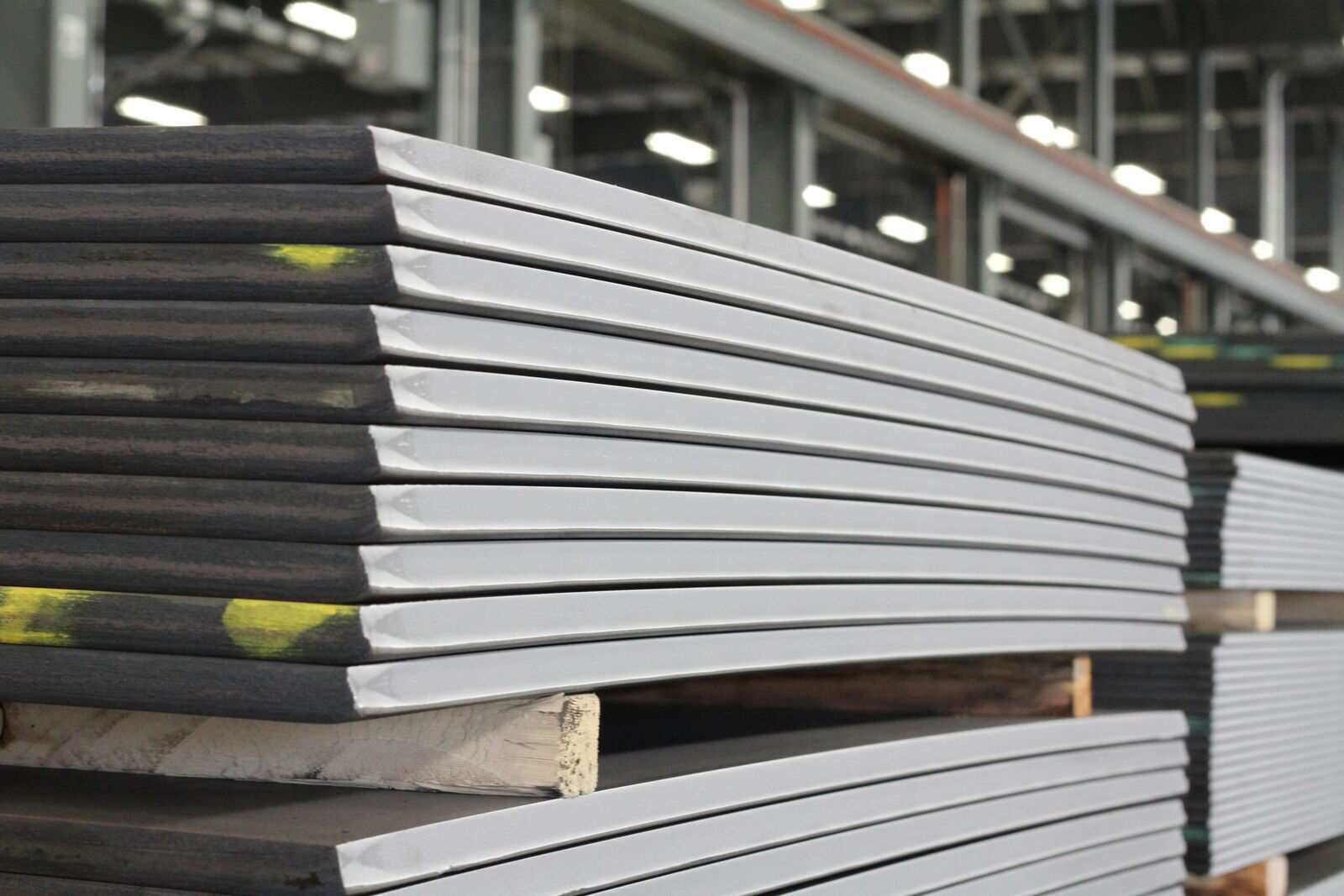

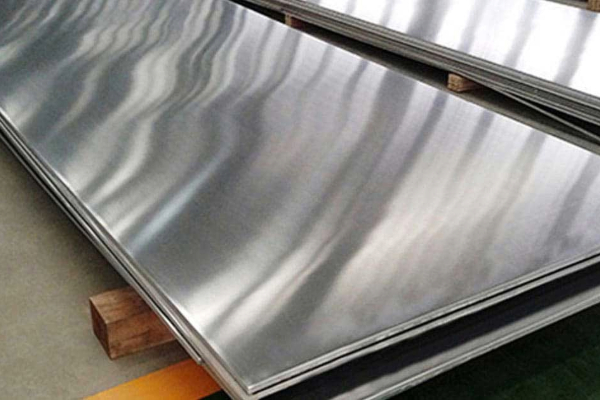

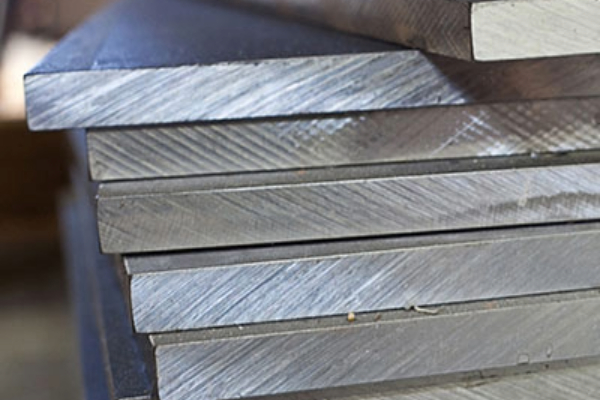

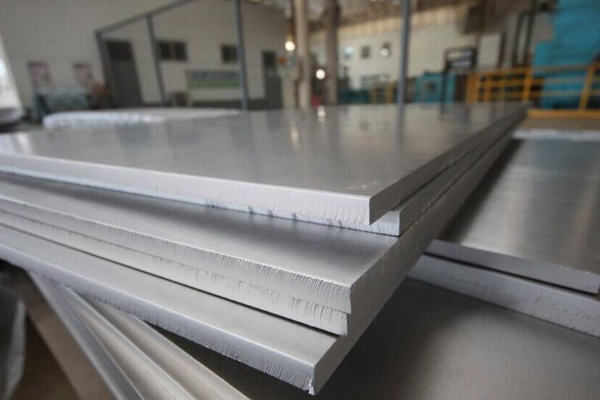

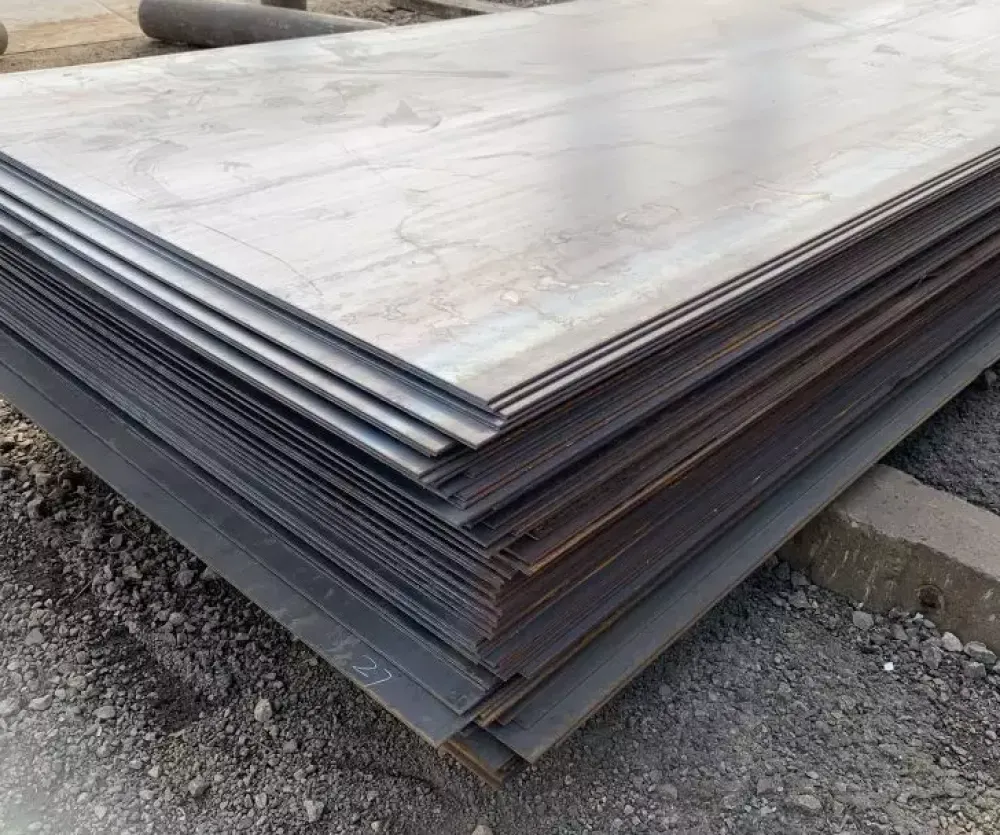

We offer a wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, and industrial stainless steel plates, all fabricated from the finest quality raw materials. Manufactured in compliance with international quality and safety standards, these products are available in various dimensions and offered at highly competitive prices. While primarily applied in the construction and engineering sectors, our products also cater extensively to industries such as dairy plants, pharmaceutical plants, chemical plants, food processing plants, fabrication and structural works, and many more
| Sheets & Plates Specifications | ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |
| Sheets & Plates Size Range | Cold rolled ASME SA240 Grade Stainless Steel Sheet 0.5-6.4 mm Hot rolled ASME SA240 Grade Stainless Steel Sheet 3.0–10.0 mm |
| Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Stainless Steel Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Stainless Steel Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SA240 SS Strips EN 10088 SA -240-Strips |
| Finish of Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |
| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
Available Grades
Stainless Steel
|
TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 202, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 446, 904L,ASTM A240, |
|---|---|
Titanum
|
ASTM B265 Gr. - 1, 2, 3, 5 (6AL - 4V), 7,9,11,12,23 (6AL - 4V ELI) |
High Nickel Alloys
|
Hastelloy, Nickel, Monel, Inconel, Incoloy,Brass,Aluminium,Titanium, Alloy-20 & Cupro Nickel |
Duplex
|
ASTM A815 / UNS S31803 & S32205 (2205) |
Super Duplex
|
ASTM A815 / UNS S32750 (2507) & S32760. |
Other
|
CRCA, Spring Steel, Silver Steel & Hardox |
Finish
|
2B, 2D, HRAP, CR, BA (MATT NO 4 & NO 8), Plastic Coated |
Hardness
|
Soft, Hard, Half Hard, Quarter Hard, Spring Hard. |
Stainless & Duplex Steel
RANGE: 0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.
Stainless Steel: ASTM / ASME SA 240 202, 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430
Duplex Steel: ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.
Nickel Alloy
RANGE: 5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.
Nickel Alloy
ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )
Inconel
Grades: Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750
Standard: ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443
Incoloy
Grades: Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS
Type: Seamless / Erw / Welded/ Fabricated
Standard: ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751
- Petrochemicals Plants
- Oil Refineries
- Sugar Mills
- Fertilizers Plants
- Chemical Plants
- Pharmaceuticals
- Textile Machinery
Monel
Grades: Monel 400, Monel k500
Type: Seamless / Erw / Welded/ Fabricated
Form: Round, Square, Rectangular, Hydraulic etc.
Length: Single Random, Double Random & Cut Length
End: Plain End, Beveled End, Threaded
Titanium
Sheet and Plates Specifications
1) Hot and coll rolled, Gr1~Gr23
2) Thickness:0.3mm - 60mm
3) Length:6000mm
4) ASTM B265,ASTM 4911,F67,F136
Material :titanium and titanium alloys
Pure Titanium Grade : GR1, GR2, GR3, GR4
Titanium Alloy Grade : GR5 (6% Al, 4%V)
GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)
