+91 9766352586Round Bar
| Bar Standard | ASTM A276, ASTM A479, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A276 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A276 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| SUS T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Stainless Steel Flat Bars Condition | Hardened & tempered, annealed |
| ASTM A276 Type Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rod Processing | Bar cutting to 650mm |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our Stainless Steel Round bar conforms to NACE MR0175/ISO 15156 | |
Available Grades :
| Stainless Steel | 304/304, 316/316L/316Ti, 321, 310/3105, 317/317L, 347, 17-4Ph.15-5Ph, 904L, 410, 420, 430, 431, 430F, 416, 440C etc. |
| Duplex | UNS31803, UNS 32205, UNS 32750, UNS 32760 |
| Mild Steel | EN8, EN19, EN24 1018 Tool Steel, D2 |
| Alloy Steel | F5, F9, F11, F22, F91 Carbon Steel, Mild Steel, Boiler Quality Plates |
| Specification | ASTM, AISI, ASME, DIN, UNS etc. |

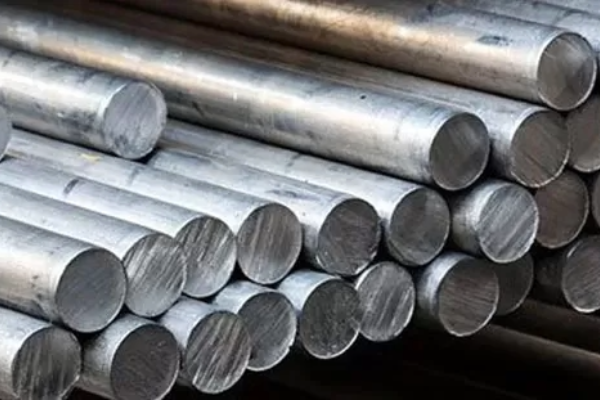

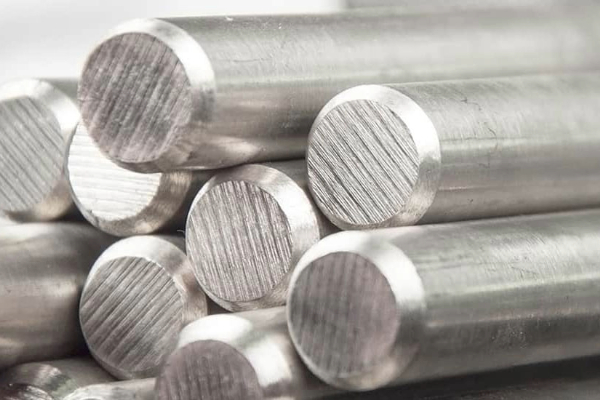

Stainless Steel Round Bar
Range : 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod.
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade : 202, 303, 304, 304L, 316, 316L, 316Ti, 310, 310S, 321, 317L, 347, 347H, 904L, 17 4PH, 15 5PH, 410, 420
Nickel Alloy Round Bar
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: INCONEL 600, 601, 625, 718, 800, 800H, 800HT,825, 925. SMO 254, ALLOY 20(20CB3), MONEL 400, 500K, RA 330, HASTELLOY C-276, HASTELLOY B2, B3, TITANIUM Gr 1 to 5
Duplex/ Super Duplex Round Bar
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: UNS S31803 (F51), UNS S2205 (F60), UNS S32750 (F53), UNS S32760 (F55)

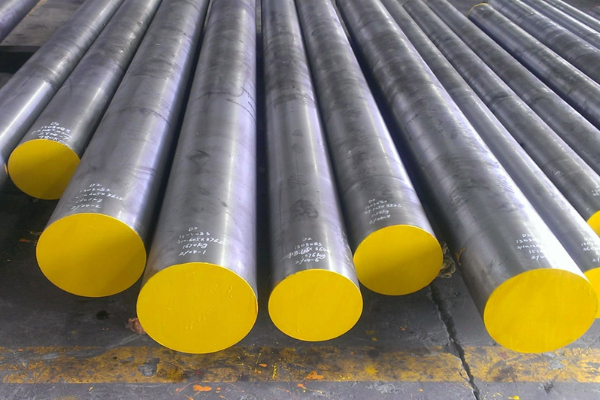

Alloy Steel Round Bar
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: SAE 1018, SAE 8620, SAE 1010, EN Series, C45, EN 42 J
Copper Nickel Round Bar
Range: 3.17 MM TO 350 MM DIA
Type : Round Bar, Bright Bar, Black Round Bar, Forged Bar, Hex Bar, Flat Bar, Rod
Tolerances : h11
Surface Finish : Cold drawn or Belt polished condition
Available Grade: SAE 1018, SAE 8620, SAE 1010, EN Series, C45, EN 42 J

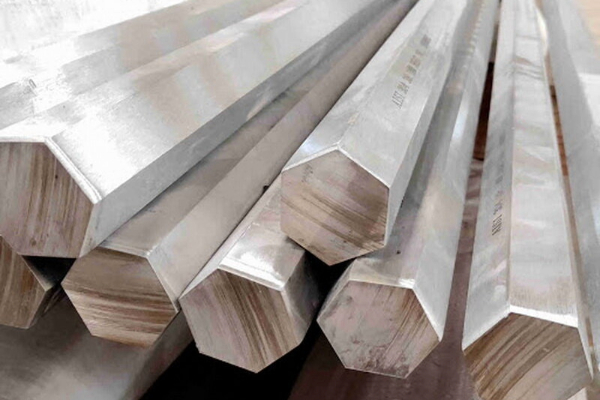

Hex Bar
Size : 5mm Dia upto 150mm Dia
Specification : ASTM, AISI, ASME, DIN, UNS etc.
Condition : Rolled, Forged, Annealed, Picked, Hot Rolled, Cold Roll

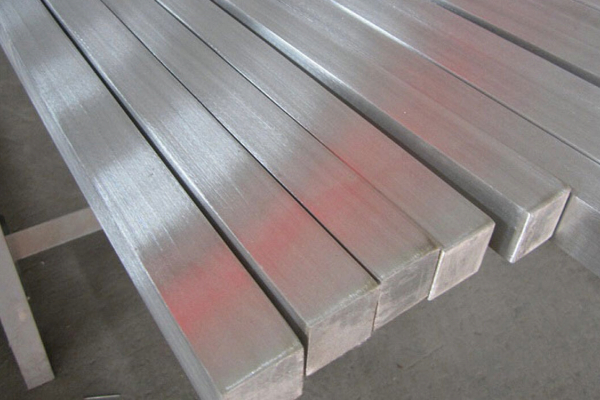

Square Bar
Size : 5mm Dia upto 250mm Dia
Specification : ASTM, AISI, ASME, DIN, UNS etc.
Condition : Rolled, Forged, Annealed, Picked, Hot Rolled, Cold Roll
